SAE 30
LWND30
Air compressors, hydraulic systems
Conventional Lubricants
The Right Oil Monograde motor oil, non-detergent oil, gear oil and ATF for working equipment.
A complete line of conventional lubricants for older and light-duty equipment — blended and packaged in Houston, Texas.
See the product line ↓What these products are for
Nine conventional lubricants — motor oil, non-detergent oil, gear oil and ATF — covering the jobs that keep older equipment running: air compressors, hydraulics, gearboxes, farm machinery and stationary engines.
Air compressors
Non-detergent SAE 30 and SAE 40 for piston-type air compressors that specify an oil without detergent additives.
Hydraulic systems
Non-detergent grades for hydraulic systems and light hydraulic equipment calling for a straight mineral oil.
Transmissions and differentials
GL-1 gear oil in SAE 90 and SAE 140 for manual gearboxes, differentials and transfer cases.
Farm machinery
Monograde engine oil for tractors, harvesters and farm equipment operating in hot conditions.
Generators and stationary engines
SAE 40 and SAE 50 monograde for generators, pumps and stationary engines running long hours.
Power steering and older automatics
Type A ATF for power steering systems and older automatic transmissions specifying a Type A fluid.
Lubriwest motor oil and lubricant product line
Non-Detergent Monograde Motor Oil
Straight mineral oil with no detergent additives, for equipment that specifically calls for a non-detergent oil: air compressors, hydraulic systems, gearboxes, older engines and general shop lubrication. Not for use in modern automotive gasoline engines.
SAE 40
LWND40
Gearboxes, general lubrication

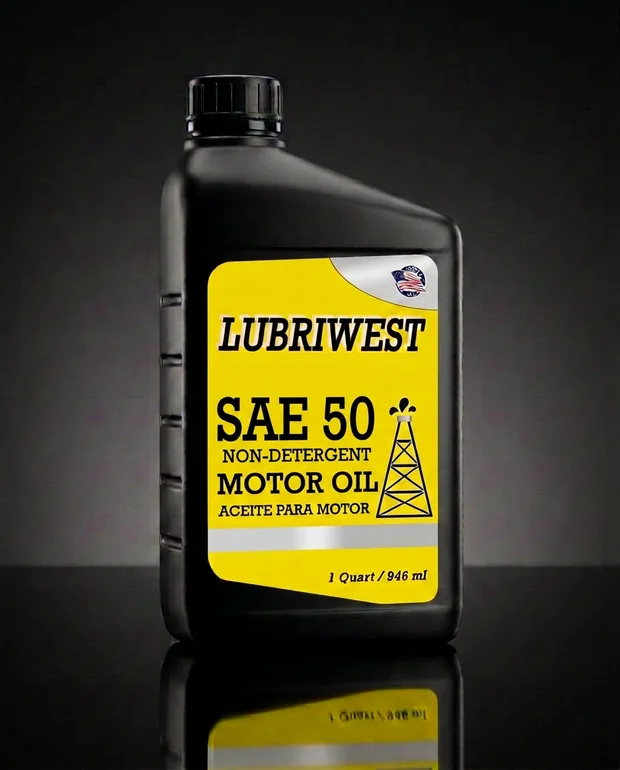

SAE 50
LWND50
Heavy gearboxes, warm climates
Heavy Duty Monograde Motor Oil
Monograde detergent motor oil for older and high-mileage gasoline and diesel engines, farm equipment, tractors, generators and stationary engines working in warm climates. Available in SAE 30, SAE 40 and SAE 50.
SAE 30
LWHD30
Older gasoline engines

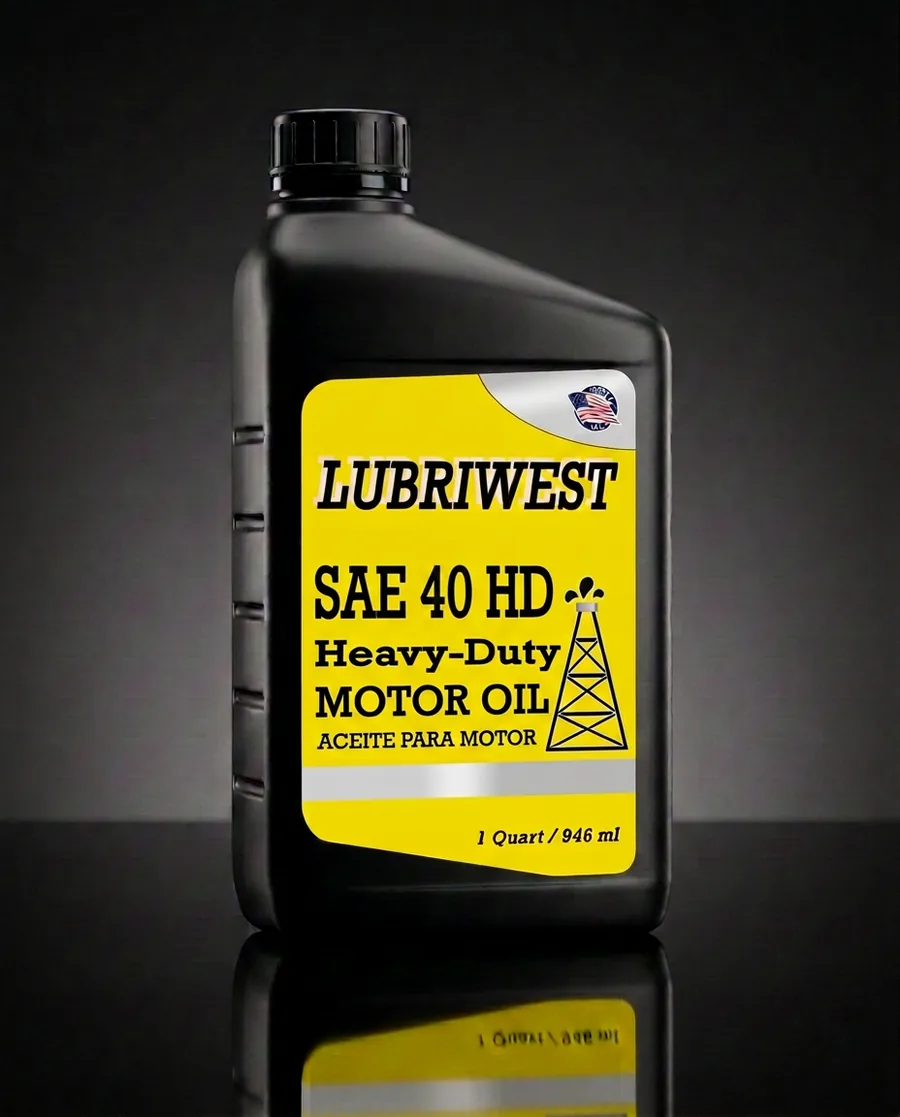

SAE 40
LWHD40
Farm and diesel engines
SAE 50
LWHD50
Stationary engines, hot climates
Gear Oil — API GL-1
API GL-1 straight mineral gear oil for manual transmissions, differentials, transfer cases and industrial gearboxes that call for a lubricant without extreme-pressure additives. Available in SAE 90 and SAE 140.

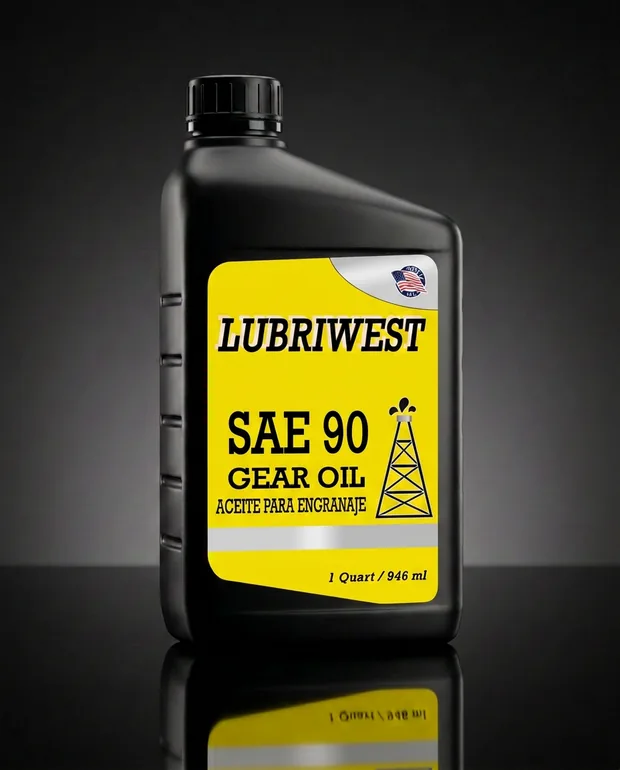

SAE 90
LWGL90
Manual transmissions, differentials

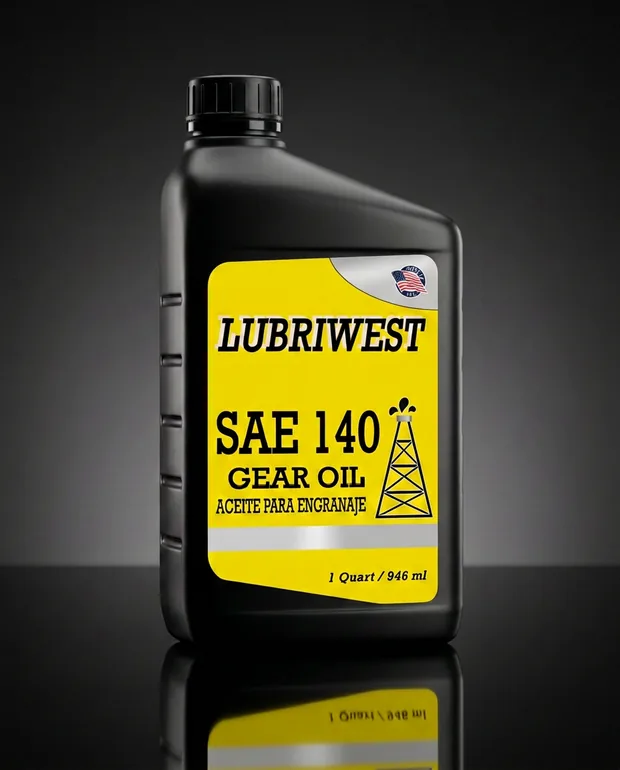

SAE 140
LWG140
Differentials, industrial gearboxes

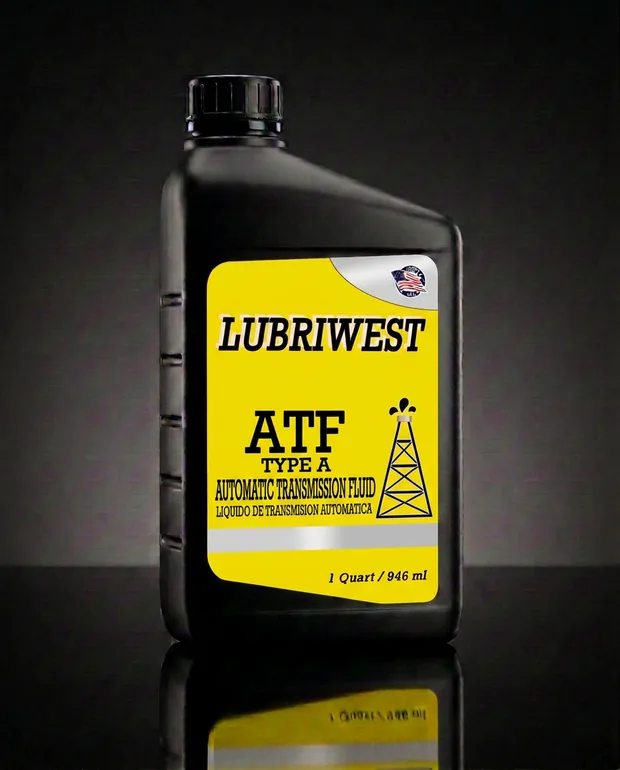

Automatic Transmission Fluid — Type A
Type A automatic transmission fluid, dyed red so leaks are easy to spot. For older automatic transmissions, power steering systems and hydraulic systems that specify a Type A fluid. Not for use where DEXRON, MERCON or Type F fluids are specified.
Type A
LWATFA
Automatic transmissions, power steering
Master Specification Table
Typical properties for all nine Lubriwest products: viscosity grade, API service designation, kinematic viscosity at 40 °C and 100 °C, flash point and pour point.
| Property | LWND30 | LWND40 | LWND50 | LWHD30 | LWHD40 | LWHD50 | LWGL90 | LWG140 | LWATFA |
|---|---|---|---|---|---|---|---|---|---|
| Grade | SAE 30 | SAE 40 | SAE 50 | SAE 30 | SAE 40 | SAE 50 | SAE 90 | SAE 140 | Type A |
| API Service | API SA | API SA | API SA | API CC/SC | API CC/SC | API CC/SC | API GL-1 | API GL-1 | — |
| Appearance | Dark Amber | Dark Amber | Dark Amber | Dark Amber | Dark Amber | Dark Amber | Dark Amber | Dark Amber | Red |
| Density (g/cm³) | 0.88 | 0.89 | 0.90 | 0.88 | 0.89 | 0.90 | 0.90 | 0.91 | 0.87 |
| KV @ 40°C (cSt) | 98 | 150 | 159 | 98 | 150 | 159 | 165 | 385 | 43.2 |
| KV @ 100°C (cSt) | 10.9 | 14.5 | 17.5 | 11.0 | 14.6 | 17.5 | 15.5 | 27.0 | 6.5 |
| Flash Point | 180°C | 200°C | 220°C | 185°C | 206°C | 225°C | 206°C | 250°C | 180°C |
| Pour Point | −8°C | −6°C | −4°C | −18°C | −15°C | −12°C | −3°C | 0°C | −33°C |
Scroll to see all nine products →
Typical values, not a specification. Subject to normal manufacturing variation. API SA, CC/SC and GL-1 are obsolete service designations retained here because they describe the equipment these products are intended for; always follow the equipment manufacturer's recommendation.
